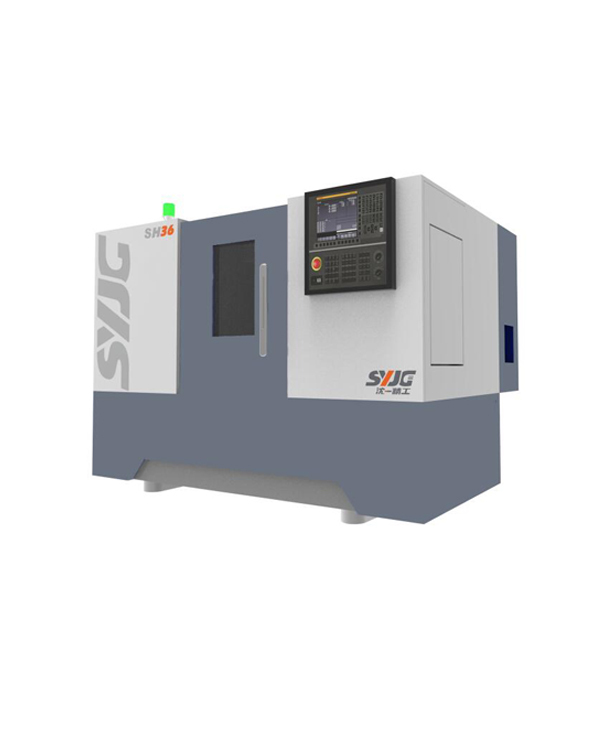

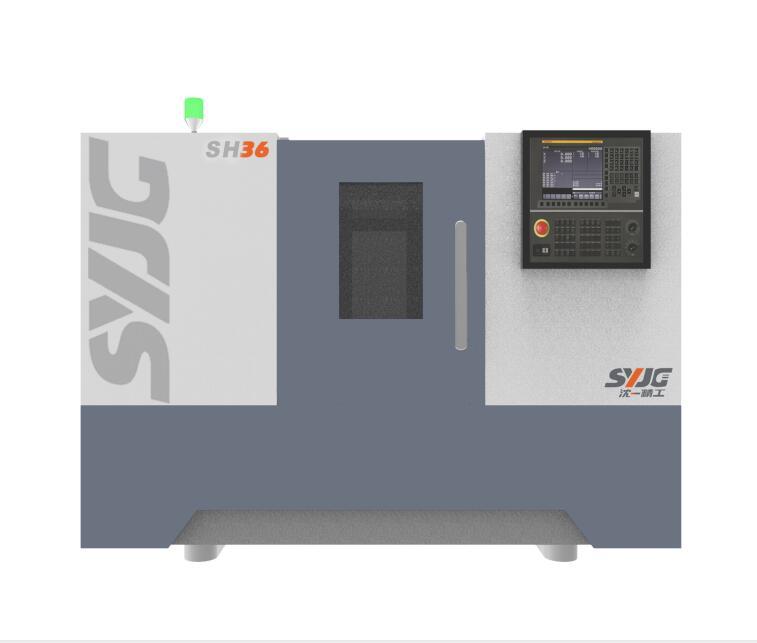

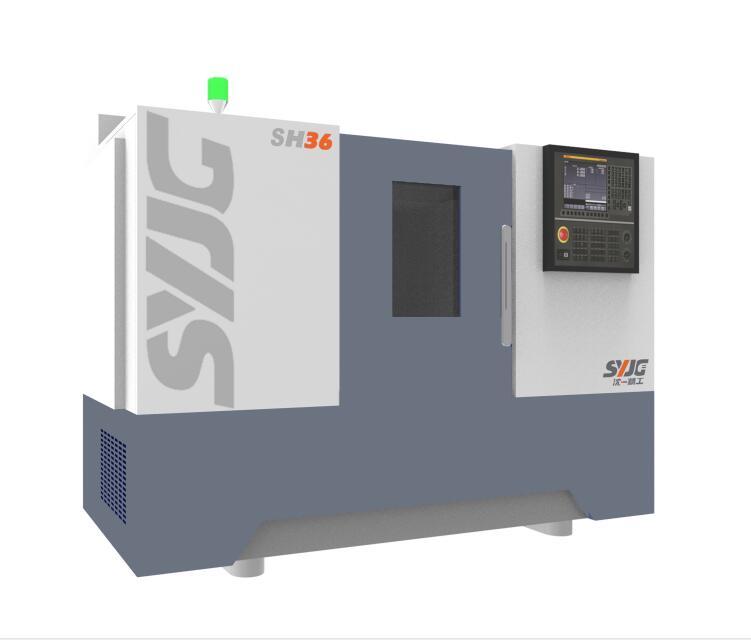

SH36 Internation Quality Good After Sale Service CNC Lathe Horizontal Lathe
Item No.: LPMIE137
SH36 series full function CNC lathes are upgraded on the basis of sales hot products, hydraulic sleeve tailstock, built-in left sliding doors, and smaller floor area. Targeted structural optimization tries to meet the needs of users in manufacturing upgra
Description
Product Description
SH36 series full function CNC lathes are upgraded on the basis of sales hot products, hydraulic sleeve tailstock, built-in left sliding doors, and smaller floor area. Targeted structural optimization tries to meet the needs of users in manufacturing upgrading and transformation.
Technical Parameters
| Project |
Unit |
SH36 |
SH36L |
| Max. Swing diameter |
mm |
500 |
560 |
| Max. cutting length |
mm |
500 |
1000 |
| Max. cutting diameter |
mm |
360 |
360 |
| Max. rotary diameter on the pulley |
mm |
300 |
350 |
| Type and code of spindle end |
A2-6 |
A2-6 |
|
| Main shaft hole diameter |
mm |
65 |
65 |
| Range of spindle speed |
R/min |
50~4500 |
50~4500 |
| Max. output torque of spindle |
Nm |
177 |
177 |
| Main motor output power |
kw |
11/15 |
11/15 |
| Diameter of chuck |
inch |
8” |
8” |
| X/Z axis fast moving speed |
M/min |
30 |
30 |
| X axis travel |
mm |
200 |
200 |
| Z axis travel |
mm |
550 |
1050 |
| Taper of taper hole of tailstock spindle |
Mohs |
5# |
4# |
| Tailstock travel |
mm |
450 |
710 |
| Tailstock sleeve stroke |
mm |
100 |
100 |
| Standard tool rest type |
Horizontal type 8 position |
Horizontal type 8 position |
|
| External circular knife |
mm |
25*25 |
25*25 |
| Diameter of boring tool rod |
mm |
∅40/∅32/∅25/∅20 |
∅40/∅32/∅25/∅20 |
| Tool overall dimensions |
mm |
2300*1700*1930 |
3570*1860*1850 |
| The host weight |
kg |
3600 |
4600 |
| Dimensions of side chip cleaner |
mm |
3000*600*1500 |
4800*1300*1500 |
| Dimensions of back chip cleaner |
mm |
2700*800*1350 |

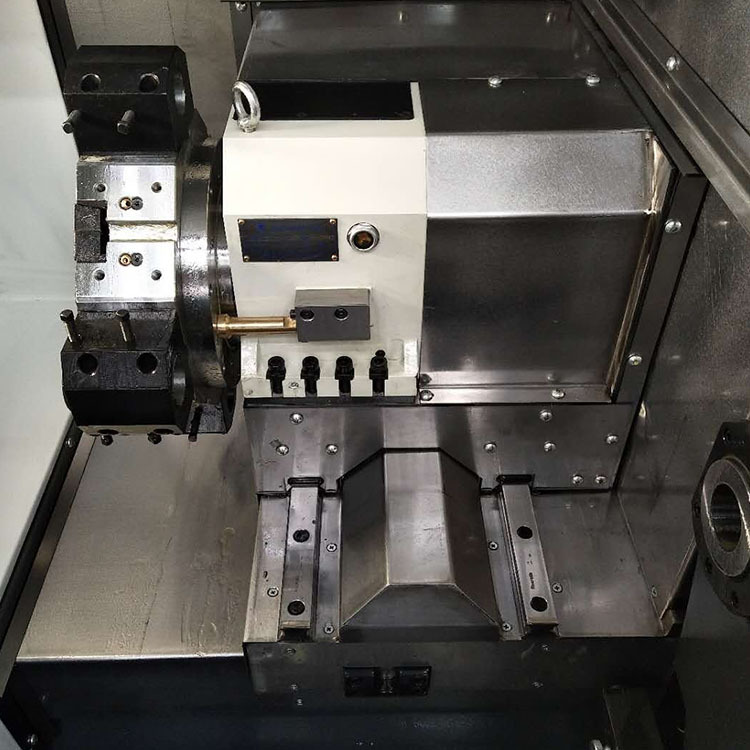

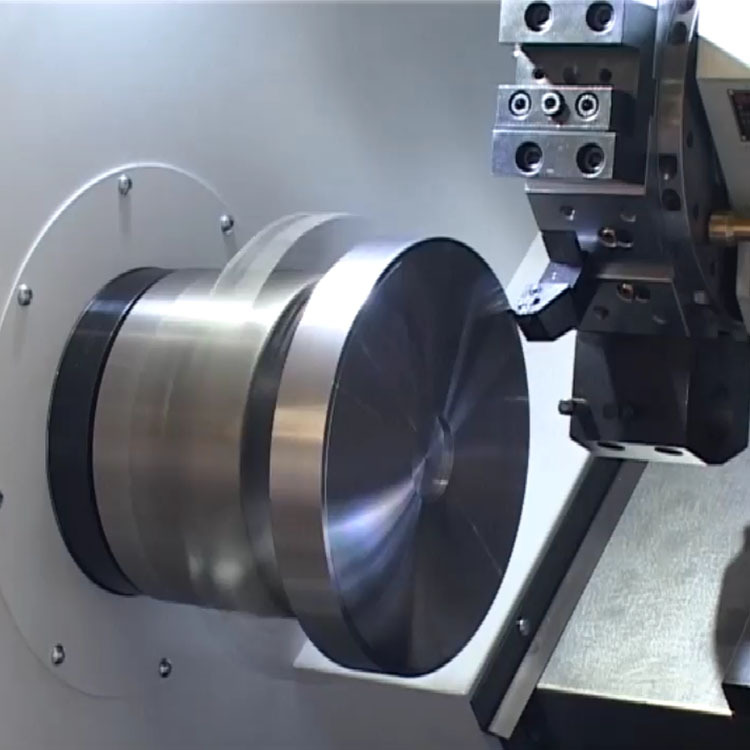

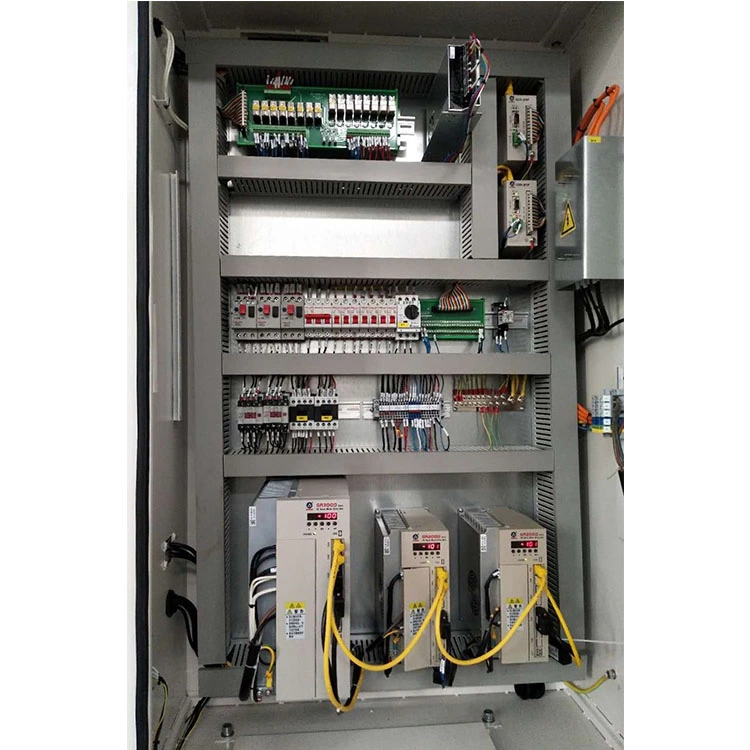

Details image
