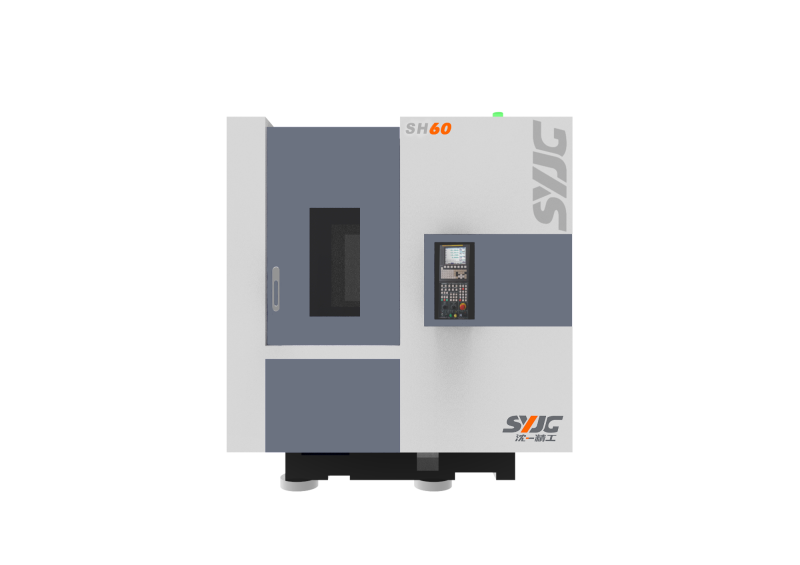

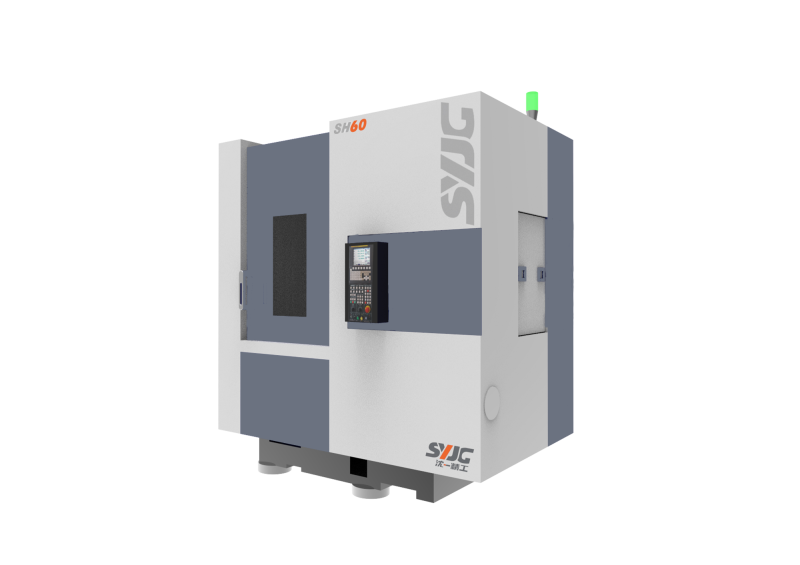

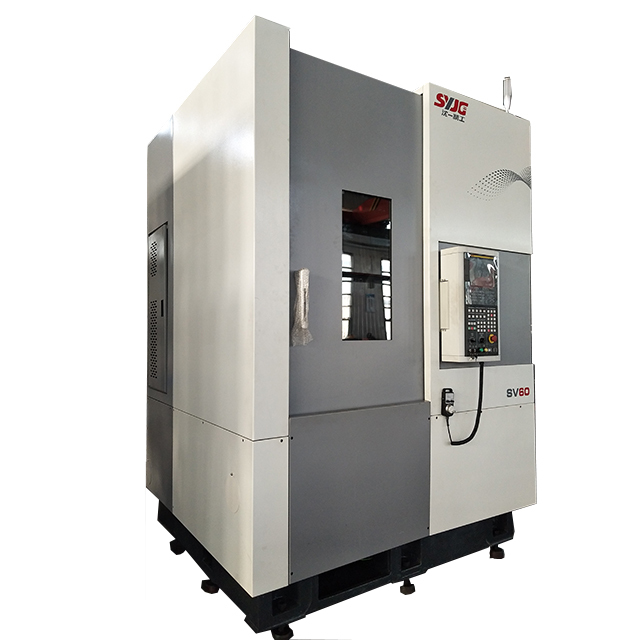

SV60 Quality Control System Machine CNC Lathe Automatic Lathe Machine

Item No.: LPMIE138
The SV60 vertical CNC lathe, accumulated for many years in the industry and inherited by the classical tradition, is suitable for processing brake hub, hub, reducer housing and other auto parts, elevator wheel, engineering sprocket wheel, valve, electrica
INQUIRY
Description

Product Description

The SV60 vertical CNC lathe, accumulated for many years in the industry and inherited by the classical tradition, is suitable for processing brake hub, hub, reducer housing and other auto parts, elevator wheel, engineering sprocket wheel, valve, electrical housing, etc., and can also be used for soft and hard machining of bearing, can realize the turning instead of grinding.


Technical  Parameters

Project

Unit

SV60

SV60L

Max. Swing diameter

mm

860

1000

Max. cutting length

mm

700

800

Max. cutting diameter

mm

800

900

Type and code of spindle end

  A2-11

A2-15

Range of spindle speed

R/min

50~1500

50~800

Max. output torque of spindle

Nm

1245

2000

Main motor output power

kw

22/30

37/55

Diameter of chuck

inch

21

24

X axis fast moving speed

M/min

16

10

Z axis fast moving speed

M/min

16

12

X axis travel

mm

600

800

Z axis travel

mm

720

850

Standard tool rest type

  Servo vertical 5 position

Servo vertical 5 position

External circular knife

mm

32*32

32*32

Diameter of boring tool rod

mm

50

50

Max bearing capacity of spindle

kg

600

800

Tool overall dimensions

mm

3200*2200*3300

3940*2795*3671

The host weight

kg

10500

15000

Dimensions of back chip cleaner


mm

3850*800*1140

3850*800*1140


Details image
