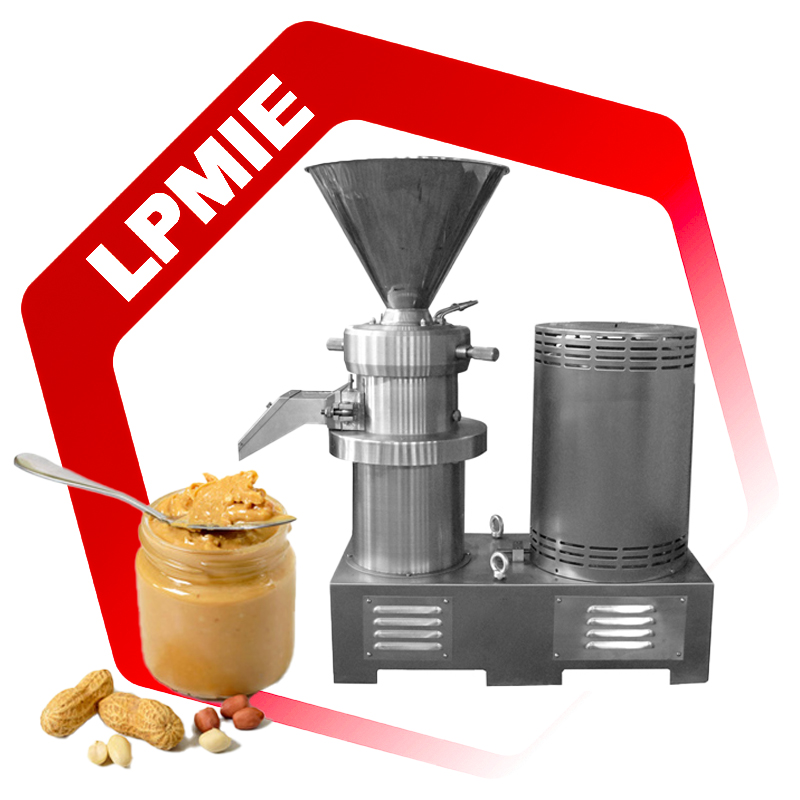

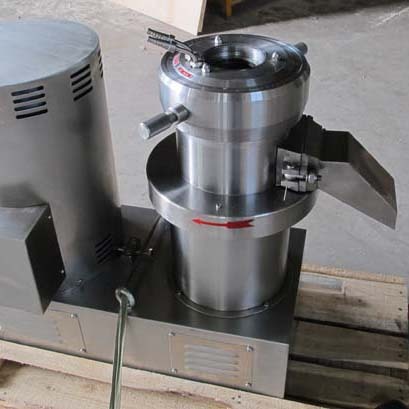

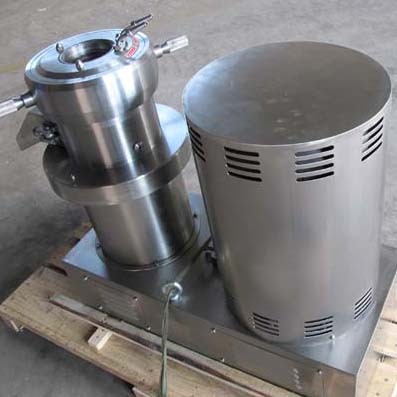

JMS Series Colloid Mill

Item No.: LPMIE107
Full stainless steel colloid mill machine widely used in pharmaceutical,food and chemical industries.
Request Quote
Description

Introduction:
This machine has such excellence as follows: well-designed, simple operation, low noise, easy servicing, small in size, corrosion resisting, wide-range use etc.
The main parts of this machine are made of high grade stainless steel which is nonpoisonous and corrosion-proof.
All critical parts of this machine are processed with advanced technique.

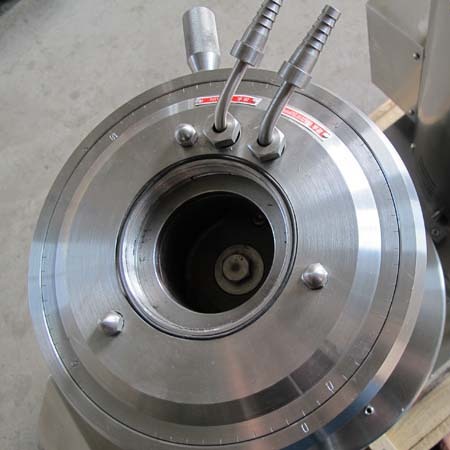

The annular clearance may be micro-adjusted by means of adjusting mechanism and an index dial is prepared.
This mechanism can be easily controlled and the quality of products will be ensured satisfactorily.
According to the different use, the different materials and hardness of grinders can be easily assembled or disassembled and cleared.
This machine runs very smoothly and steadily.
We have series assortment of goods to choose from including mills with cooling or heating system at user’s desire.

Working principle:

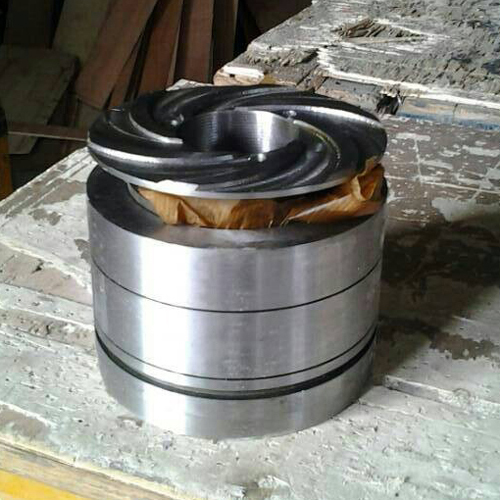

The colloid mill drives the rotating teeth (or rotor) and the matched fixed teeth (or stator) to rotate at a relatively high speed through the belt drive of the motor. One of them rotates at a high speed and the other is stationary. The processed materials generate downward spiral impact force through their own weight or external pressure (which can be generated by the pump), through the clearance between the fixed teeth and the rotating teeth( When the gap is adjustable, it is affected by strong shear force, friction force, high frequency vibration, high-speed vortex and other physical effects, so that the material is effectively emulsified, dispersed, homogenized and comminuted, achieving the effect of superfine comminution and emulsification of the material.


Applications:
Food industry: Fruit juice, jam, soybeans , peanuts, cream, beverages, lacovo (extract of malt and milk), yolk, ice cream, etc.
Chemical Industry: Solid lubricant, paint, dyestuff, emulsified asphalt, emulsified rubber, plastics pulp, adhesives, etc.
Household chemical industry: Oily, water-soluble, or powder-contain in high-quality cosmetic paste such vanishing cream, etc. Shoe polish, tooth paste, soap, detergent, bath detergent.
Other Industries: Plastic industry, medicine-producing industry, textile industry, architectural industry, paper-making industry etc.


Machine parameters:

Model

Material processing size(µm)(single cycle or multi-cycle)

Capacity (t/h) (change with the nature of material

Power of main electrical motor(kw)

rpm of electrical motor (r/min.)

Overall size (L x W x H) cm

Gross weight (kg)

JMS-50

2-50

0.005-0.03

1.1

1750-5000

53x26x58

70

JMS-80

2-50

0.007-0.5

4

1600-5000

68x38x93

210

JMS-130

2-50

0.5-2

11

1750-5000

99x44x105

420

JMS-180

2-50

0.8-6

15

1600-5000

135x55x134

550

JMS-240

2-50

4-15

37

1600-2950

135x60x128

1300

JMS-300

2-50

6-20

55-75

1750-2970

135x60x142

1600

JMS-450

2-50

10-40

160/200

1750-2970

198x73x187

3000
