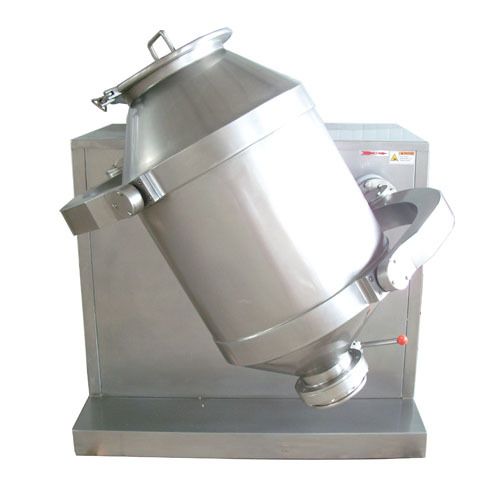

Three-dimensional Mixing Machine

Item No.: LPMIE203
Three-dimensional Mixing Machine is widely applied for the mixing of powder material by pharmacy ,chemical ,and foodstuff industries , as well as for the quick and even mixing of various materials in different granules size and gravity.
INQUIRY
Description Description 2

Description

This machine is widely applied for the mixing of powder material by pharmacy,chemical,and foodstuff industries, as well as for the quick and even mixing of various materials in different granules size and gravity.With its unique three-dimension swing, parallel moving, and rolling methods,this mixer can generate a strong pulse movement to push forward and to mix the target materials continuously.The excellent mixing effects are the result of its changeable vortex movement that possesses the energy grads inside.It also has the merits of smooth running, low noise, high loading quotiety, and short mixing time as well.


Parameters



Model

SBH-50

SBH-100

SBH-200

SBH-300

SBH-400

SBH-500

SBH-600

SBH-800

SBH-1000

SBH-1500

The mixing tank volume(m³)

62

130

250

380

480

600

700

950

1100

1500

Maximum loading capacity(kg)

50

100

200

300

400

500

600

800

900

1200

Maximum loading weight(kg)

25

50

100

150

200

250

300

400

450

600

Spindle speed(rpm)

17

17

3-16

3-16

3-16

3-12

3-12

3-8

3-8

3-8

Power(kw)

1.5

2.2

4

4

4

5.5

5.5

7.5

7.5

11

Overall dimensions  (L × W × H)(mm)

1120×1330
×1220

1370×1555
×1436

1775×2185
×1845

2000×2430
×2050

2040×2441
×2060

2165×2650
×2100

2336×2676
×2182

2685×2930
×2500

2780×2956
×2570

3070×3365
×3100

Weight (kg)

500

700

1500

1600

1700

2100

2400

2500

2550

3100
