stainless steel reaction vessel chemical reactor

Item No.: LPMIE117
Reactor made of 316L or 304 has excellent mechanical properties bearing high pressure, also it can withstand the force of the massive solid materials during feeding process. It features rapid heating, high temperature resistant, corrosion resistance, no r
INQUIRY
Description
Reactor made of 316L or 304 has excellent mechanical properties bearing high pressure, also it can withstand the force of the massive solid materials during feeding process. It features rapid heating, high temperature resistant, corrosion resistance, no rust, sanitary, no pollution etc.

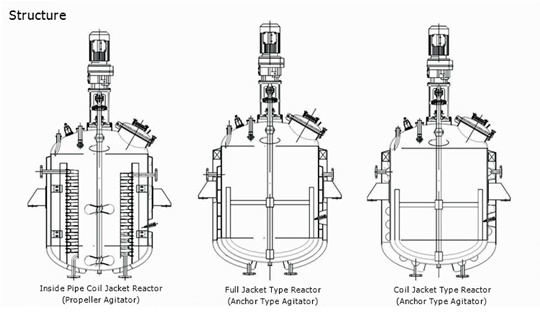

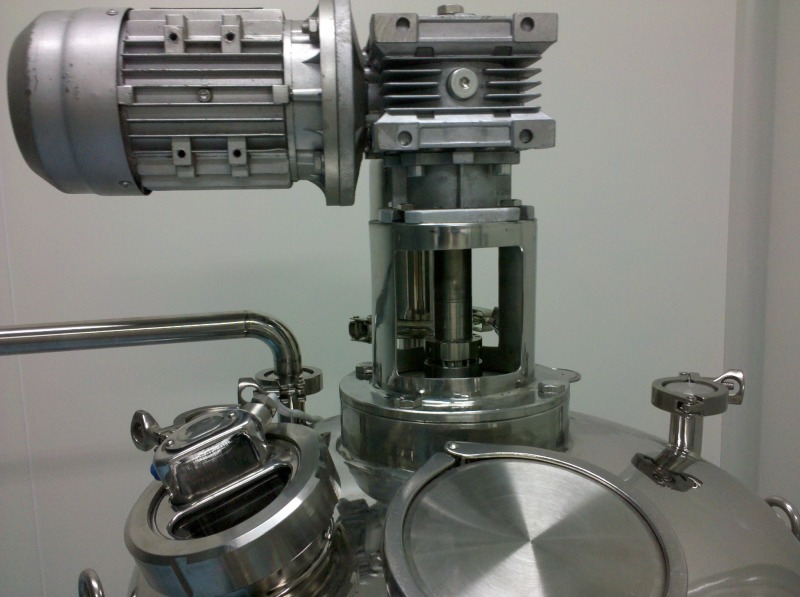

Agitator with anchor type, frame type, impeller or turbine, using cycloidal reducer, gear reducer, and frequency control; Mechanical seal sealing device meeting sanitary standard. full jacket, half pipe coil, cooling / heating coil structure available, heating mode with steam, electric heating; heat conduction oil. Can be arbitrarily  according to the user's technique.

Reactor has 200L to 20000L, and other specifications, according to the actual requirement of customers.
Apply to petrochemical, fine chemicals, rubber industry, agricultural chemicals, colourants, pharmaceutics, food and beverage, to complete the vulcanization, hydrogenation, alkylation, polymerization, condensation process


Tank Optional Configuration
Reactor can configure aseptic air filter, thermometer (Digital display or Dial type), PH meter, pressure gauge, steam sterilization hole, sight glasses,sanitary manhole, liquid in-outlet, CIP cleaning ball, liquidometer and Liquid level control system (Bearing module, non-contact ultrasonic, static pressuretransmitting device) and so on, also can configure as customer's requirement.
