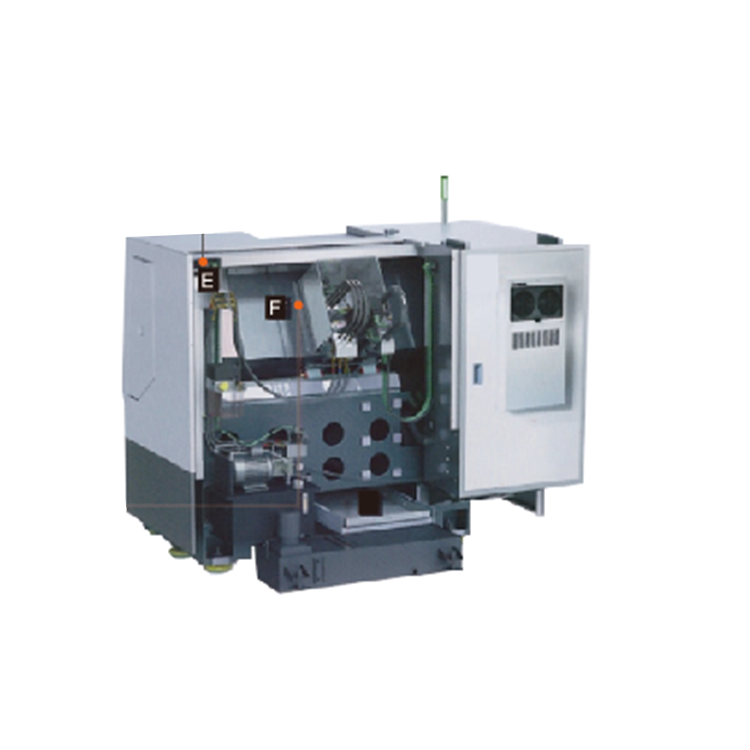

SH36A China Best Quality Full function CNC machine tool

Item No.: LPMIE128
The new design of the host structure and reliable assembly process make the SH36A series of horizontal CNC lathes upgrade comprehensively. With stable and reliable product performance and innovative ergonomic design, SH36A has become the leader in the ind
INQUIRY
Description

Product Description

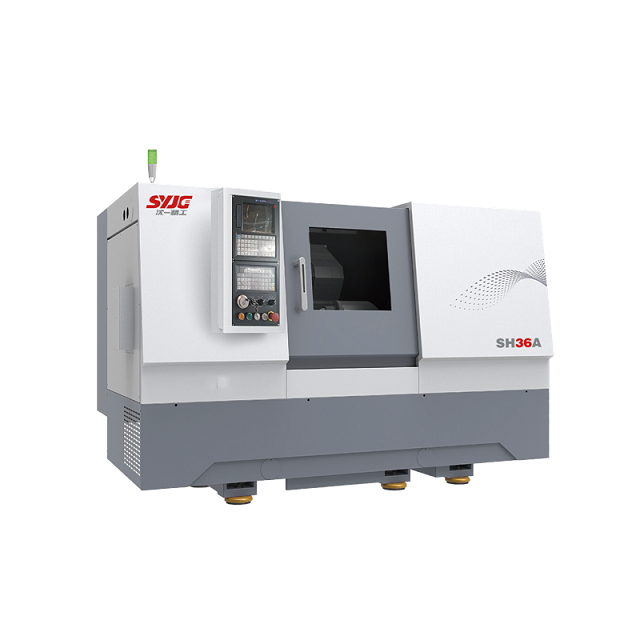

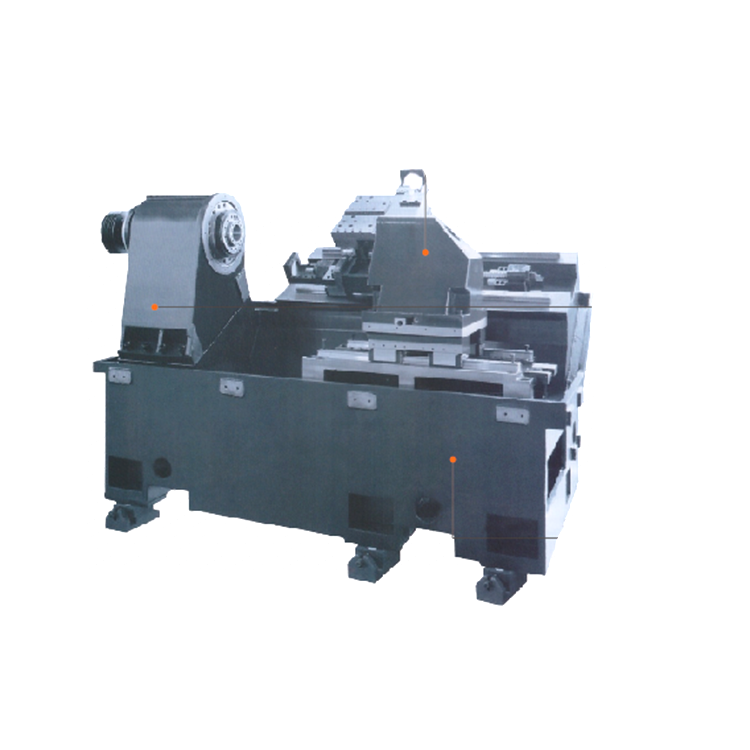

The new design of the host structure and reliable assembly process make the SH36A series of horizontal CNC lathes upgrade comprehensively. With stable and reliable product performance and innovative ergonomic design, SH36A has become the leader in the industry. In the design, the rigidity of spindle, bed, tail seat and other components is properly matched, which greatly improves the rigidity of the whole machine and ensures the stability of the heavy cutting.

Technical Parameters

Project

Unit

SH36A

Max. Swing diameter

mm

500

Max. cutting length

mm

500

Max. cutting diameter

mm

360

Max. rotary diameter on the pulley

mm

320

Type and code of spindle end

  A2-6

Main shaft hole diameter

mm

65

 Range of spindle speed

R/min

50~4500

Max. output torque of spindle

Nm

177

Main motor output power

kw

11/15

Diameter of chuck

inch

8”

X/Z axis fast moving speed

M/min

30

X axis travel

mm

200

Z axis travel

mm

550

Taper of taper hole of tailstock spindle

Mohs

5#

Tailstock travel

mm

350

Tailstock sleeve stroke

mm

100

Standard tool rest type



Horizontal type 8 position

External circular knife

mm

25*25

Diameter of boring tool rod

mm

∅40/∅32/∅25/∅20

Tool overall dimensions

mm

2700*1890*1945

The host weight

kg

3650

Dimensions of side chip cleaner

mm

4000*600*1500

Dimensions of back chip cleaner

mm

2700*800*1350
