Seamless soft gelatin capsule making machine cigarette bead making machine
Item No.: LPMIE311
Pill dropping machine, is a drop system seamless soft capsule dropping machine; It is composed of drug supply, glue supply, coolant circulation, refrigeration system, electric control system and other systems. It can be widely used in the production of se
| Product parameters | |
| Capacity: | 15pcs/s |
| Power: | 2.2KW |
| Weight: | 220KG |
Description

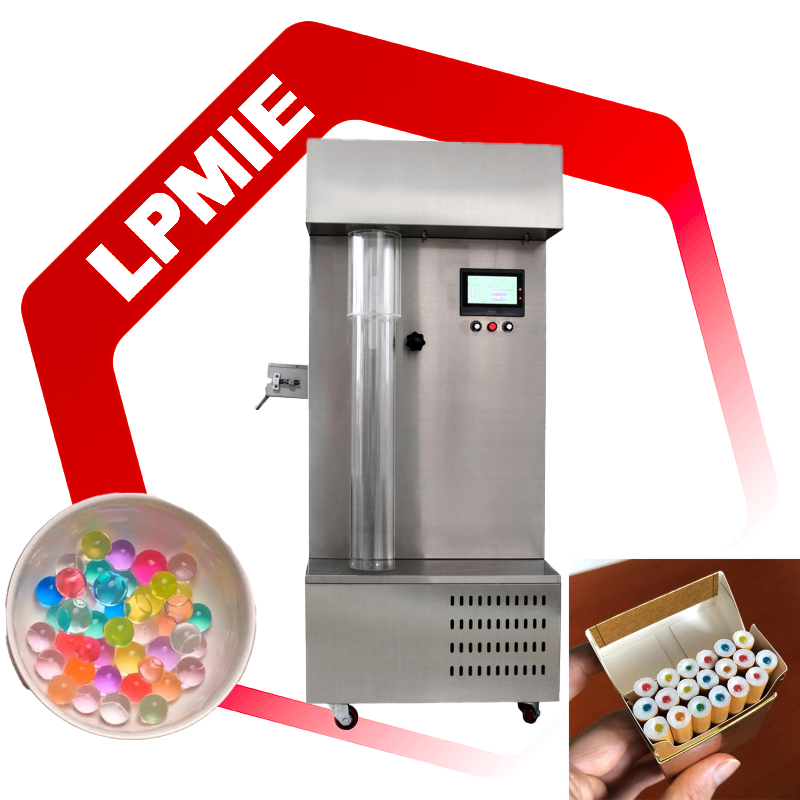

Experimental Pill Dropping Machine
Introduction:
The experimental capsule dropping machine is a drop system seamless soft capsule dropping machine; It is composed of drug supply, glue supply, coolant circulation, refrigeration system, electric control system and other systems; The filling material of the experimental type of capsule machine is insoluble oil (cod liver oil, vitamin A, D, E, K, Chinese Medicine), vegetable oil, essence, smoking cessation formula, nutrition agent, etc. Dropping pills can be formed without mold; Low cost, convenient operation and high degree of automation; The host adopts PLC control and 7-inch touch screen parameter display. It can be widely used in the research of seamless soft capsules produced by seamless soft capsules in health products, drugs, food, cosmetics, tobacco and other industries.
Performance description:
1. The glue liquid is heated at constant temperature through oil bath;
2. Equipped with frequency conversion motor and double-layer large blade mixing device, the mixing speed can be adjusted steplessly according to the glue time and process requirements;
3. The temperature of glue liquid, core material, oil bath, refrigeration and dripper can be adjusted and controlled through the touch screen according to the production process;
4. The cooling column is made of glass, which is convenient to observe the forming process of the capsule, and the height of the coolant level can be adjusted arbitrarily;
5. Imported refrigeration unit is adopted, with good refrigeration effect, and the coolant temperature can be adjusted arbitrarily within 0-10 ℃;
6. The production capacity can reach 10-40 pills / s depending on the size of the pill;
7. The whole machine is made of 304 stainless steel, which meets the requirements of GMP.
Parameters:

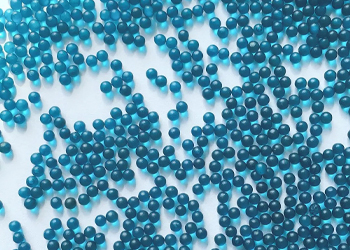

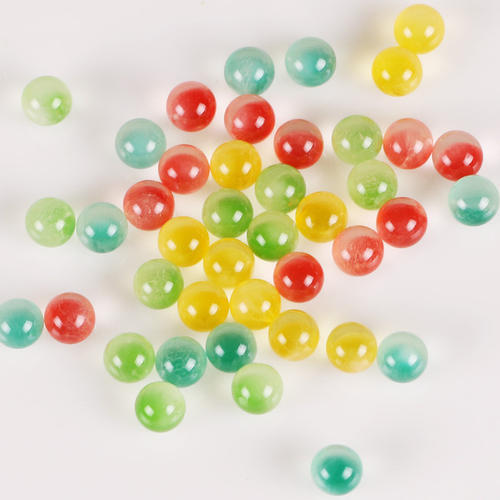

Product samples:

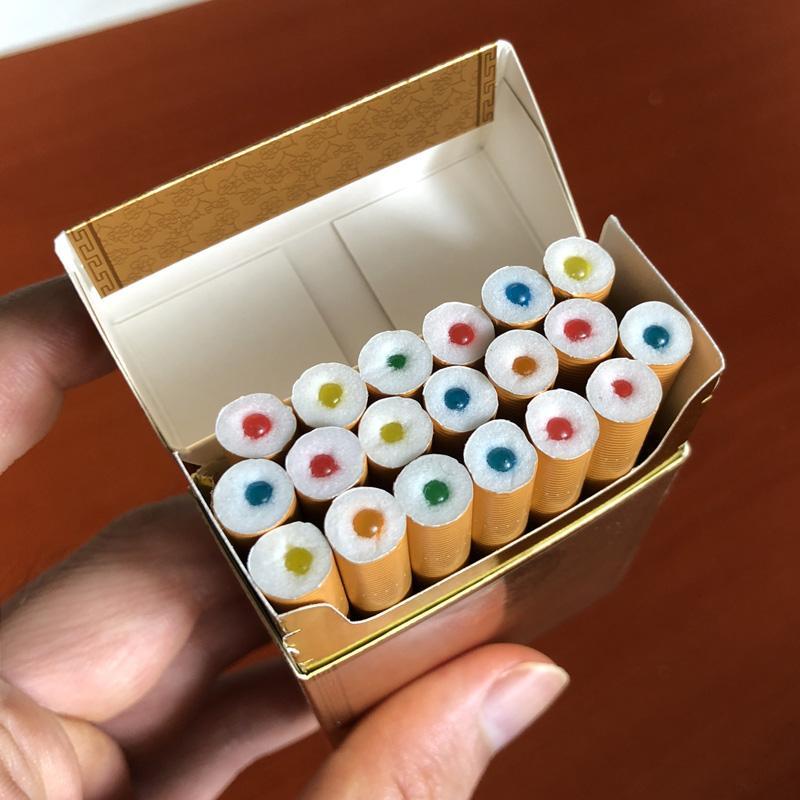

1. Capsules are applied to tobacco (2.6-2.8mm, 3.3-3.5mm diameter, wrapped in essential oils, and resistant to pressure.
There is a certain pinch breaking force).
2. Capsules are used in health products, cod liver oil pills, etc.
3. Capsules are used in medicine.
4. It is mainly used in the fields of food and gum with a diameter less than 2mmSugar, wrapped in essence)
Introduction:
The experimental capsule dropping machine is a drop system seamless soft capsule dropping machine; It is composed of drug supply, glue supply, coolant circulation, refrigeration system, electric control system and other systems; The filling material of the experimental type of capsule machine is insoluble oil (cod liver oil, vitamin A, D, E, K, Chinese Medicine), vegetable oil, essence, smoking cessation formula, nutrition agent, etc. Dropping pills can be formed without mold; Low cost, convenient operation and high degree of automation; The host adopts PLC control and 7-inch touch screen parameter display. It can be widely used in the research of seamless soft capsules produced by seamless soft capsules in health products, drugs, food, cosmetics, tobacco and other industries.
Performance description:
1. The glue liquid is heated at constant temperature through oil bath;
2. Equipped with frequency conversion motor and double-layer large blade mixing device, the mixing speed can be adjusted steplessly according to the glue time and process requirements;
3. The temperature of glue liquid, core material, oil bath, refrigeration and dripper can be adjusted and controlled through the touch screen according to the production process;
4. The cooling column is made of glass, which is convenient to observe the forming process of the capsule, and the height of the coolant level can be adjusted arbitrarily;
5. Imported refrigeration unit is adopted, with good refrigeration effect, and the coolant temperature can be adjusted arbitrarily within 0-10 ℃;
6. The production capacity can reach 10-40 pills / s depending on the size of the pill;
7. The whole machine is made of 304 stainless steel, which meets the requirements of GMP.
Parameters:
| Power supply | 220V |
| Motor power | 2.5Kw |
| Cooling unit | 1/3 |
| Mixing speed | 0-1400rpm |
| Liquid storage tank capacity | 1500mlx2 |
| Capacity | 10-40pcs/s |
| Weight | 200kg |
| Dimension | 750x600x1980mm |
Product samples:
1. Capsules are applied to tobacco (2.6-2.8mm, 3.3-3.5mm diameter, wrapped in essential oils, and resistant to pressure.
There is a certain pinch breaking force).
2. Capsules are used in health products, cod liver oil pills, etc.
3. Capsules are used in medicine.
4. It is mainly used in the fields of food and gum with a diameter less than 2mmSugar, wrapped in essence)
