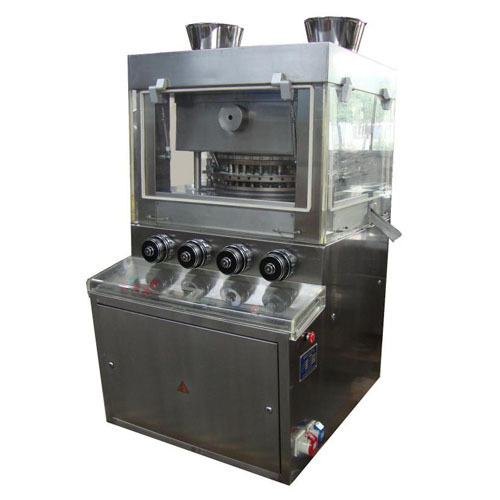

Rotary Tablet Press Machine

Item No.: LPMIE252
This machine is a double pressing type rotary tablet press machine for production of double-layer, special shape and ring shape tablet.
INQUIRY
Description





This machine is a double pressing type capable of automatic revolution and continuous pressing to press raw material in particle form into tablets.
It mainly applies to the tablet production in pharmaceutical industry and also is applicable to chemical, food, electronic and etc.
Stainless steel casing is of fully enclosed structure and internal surfaces are made of stainless steel. The surface of the rotary table receives special treatment so that is can both maintain the surface gloss and prevent cross infection, and conform to GMP requirements as well.
Windows and doors with transparent glasses results in clear watch for tablets and side panel can be fully opened so as to achieve easy cleaning and service of inside.
All controllers and operability are reasonably arranged, frequency conversion device is used to regulate speed electrically, which is featured by easy operation, steady rotation, safety and correctness. Overload protective device is mounted so that when the pressure is overloaded, the machine will automatically stop.
The mech-electrical equipment uses touch key and screen display.
Enclosed in the oil tank below the main body of the machine, the transmission system are totally separated individual components. in this way, the parts won't cause cross infection and as the transmission parts are immersed in the oil tank, they are easy to dissipate the heat and abrasion resistant.
The machine is furnished with powder measuring device and etc. it has common structure with the existing product ZP33,which facilitates standardization, interchange ability and series dies are interchangeable with tablet press ZP17.



Parameters:

Model

ZP27D

Dies

27 sets

Max. pressure

80KN

Max. dia. of tablet

25mm

Max. depth of fill

15mm

Max. thickness of tablet

6mm

Turret speed

14-36rpm

Production capacity

115000pcs/hour

Motor

5.5KW 1030rpm

Power supply

380V/50HZ 3P

Overall size

1170x1150x1750mm

Weight

1950kg
