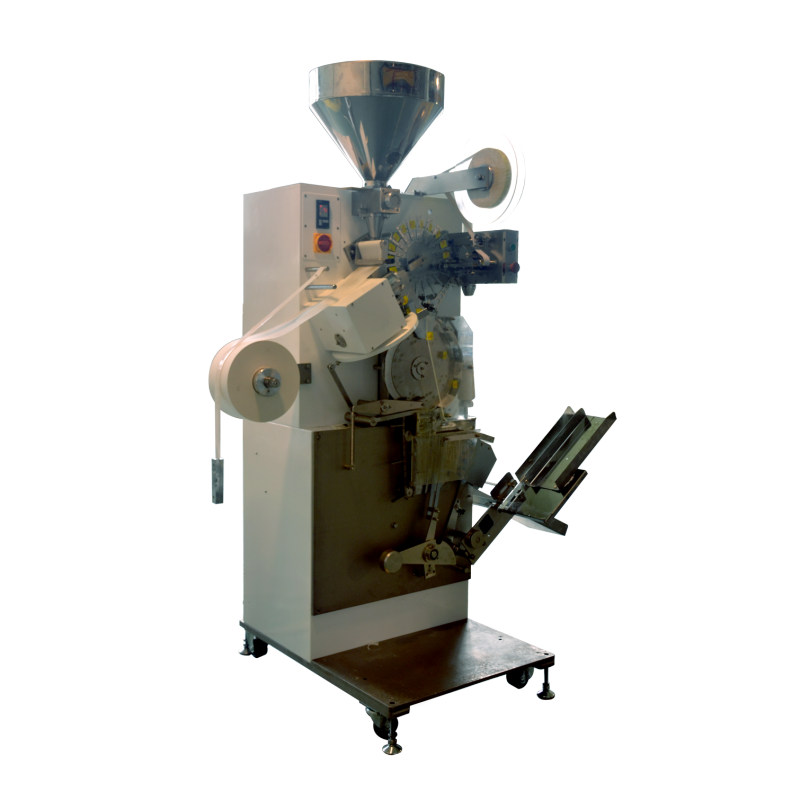

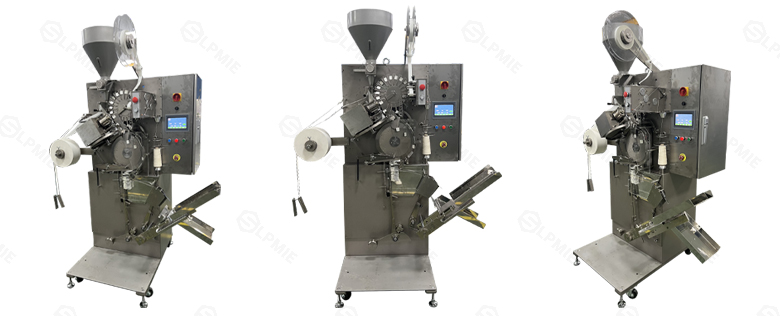

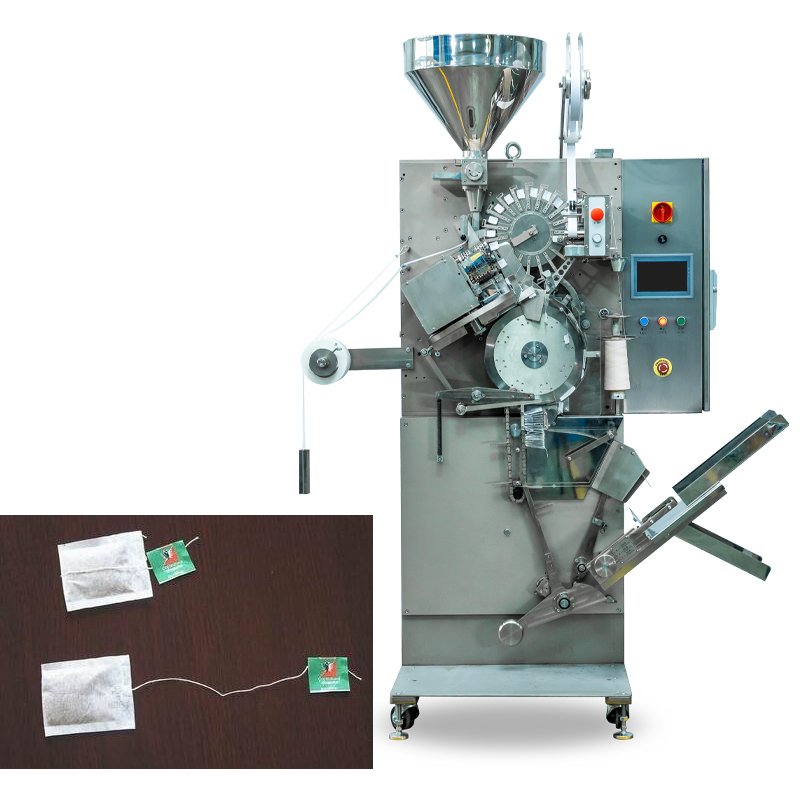

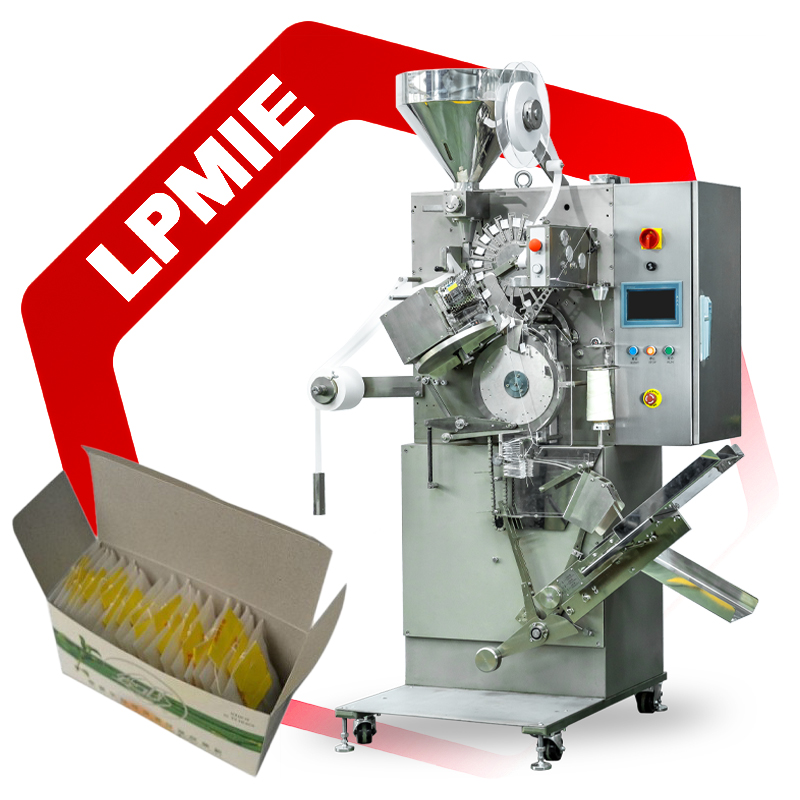

DXDC8I High Speed Tea Bag Packaging Machine

Item No.: LPMIE286

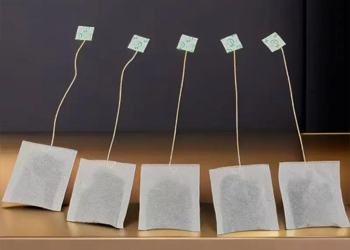

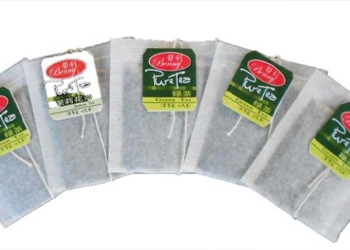

It can pack tea granule/powder into filter paper bag with thread, tag, it can count and fill quantitive teabag into a box.

High Speed Tea bag Packing Machine is an automatic precision machine use for packing broken tea and similar herbs into small bags and realize fully automatic procedure including ration filling, heat-sealing of tea bag, pasting thread, linking tag, envelope sealing, dividing groups and counting tea bag. Our company has developed multi-types of Tea-Packing Machine which based on advanced technology in the domestic and overseas trade and has reached the same level of imported equipment; furthermore some performances have exceeded this level.

Tea bag packing machine Model DXDC8I has an automatic boxing device instead of an envelope packing system.

Technical data:

1) Max. output: 120bags/minute
2) Max. dosage: 6cm3
3) Bag dimensions: 62.5 X 50mm
4) Tag dimensions: 28 X 24mm
5) Thread length: 210mm
6) Packing in boxes:
     a) 25, 50, 100
     b) 30, 60
     c) 20, 40
7) Power supply: AC 380V
8) Total power: 1.25kW
9) Weight: 540kg
10) Overall dimensions: 1.7 X 0.9 X 2m
11) Packing: 1pc/carton
Carton dimensions: 1.236 X 1 X 1.855m

Packing material consumption

1) Filter paper: 7500bags/kg
2) Tag paper: 10000tags/kg
3) Thread: 20000bags/spool(4270m)
4) Vinayil: 70000bags/kg
5) Envelope paper: 1300bags/kg

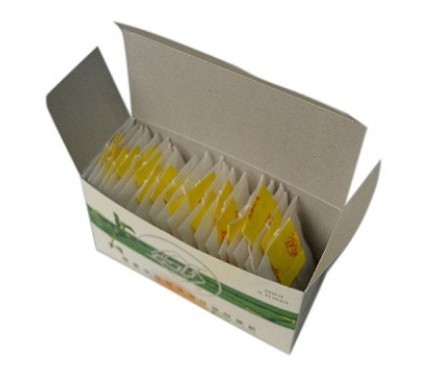

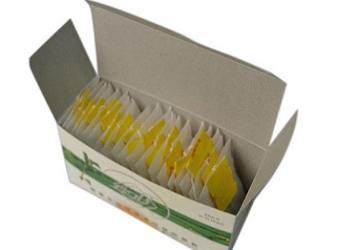

6) Box counted according to the number of bags
