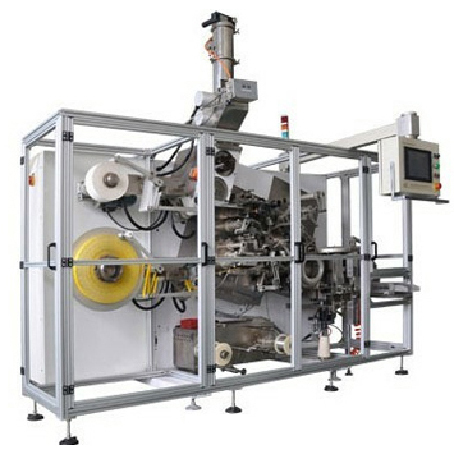

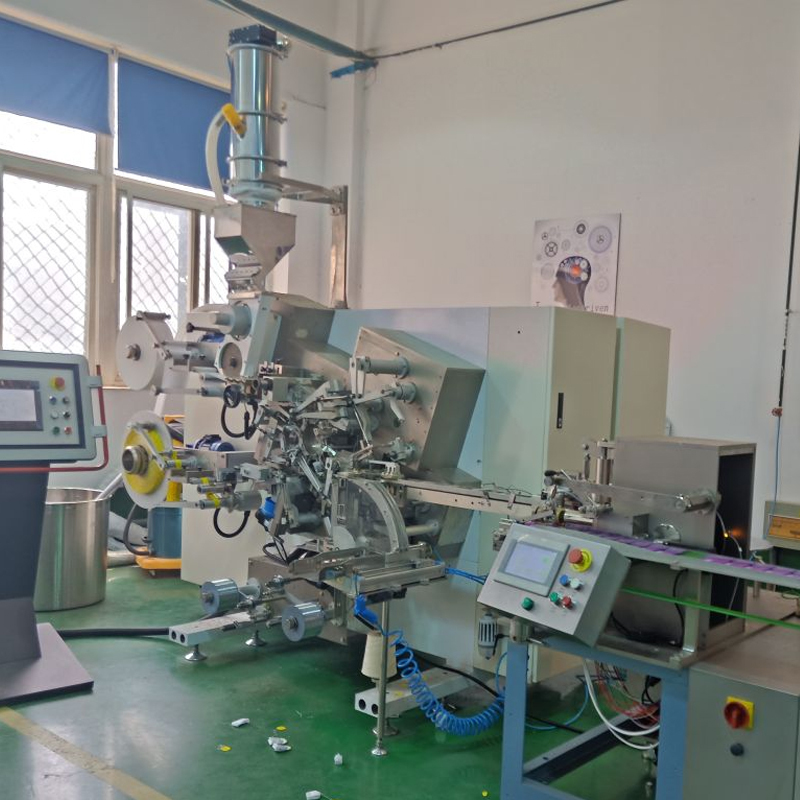

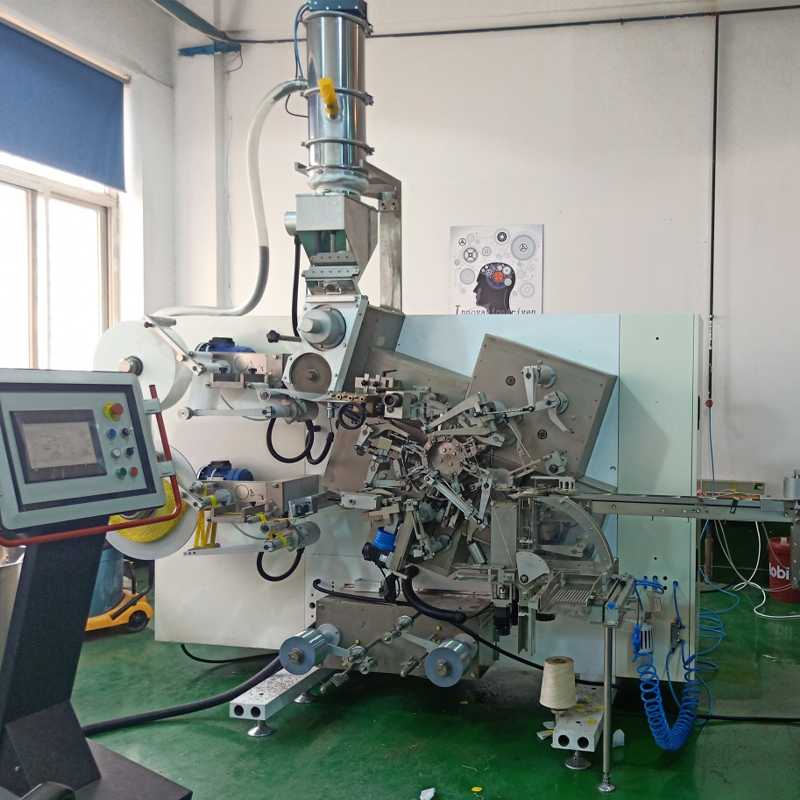

DXDC10 High Speed Double chamber tea bag packing machine

Item No.: LPMIE263
It can pack tea into double chamber filter paper bag with thread and tag and carton
INQUIRY
Description


The machine DXDC10 is a kind of automatic tea bag machine for the packing of tea and similar Chinese herbs/Flower tea.

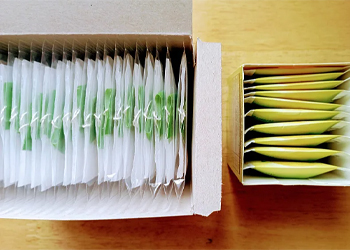

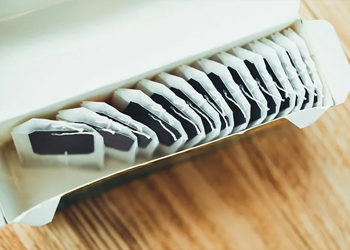

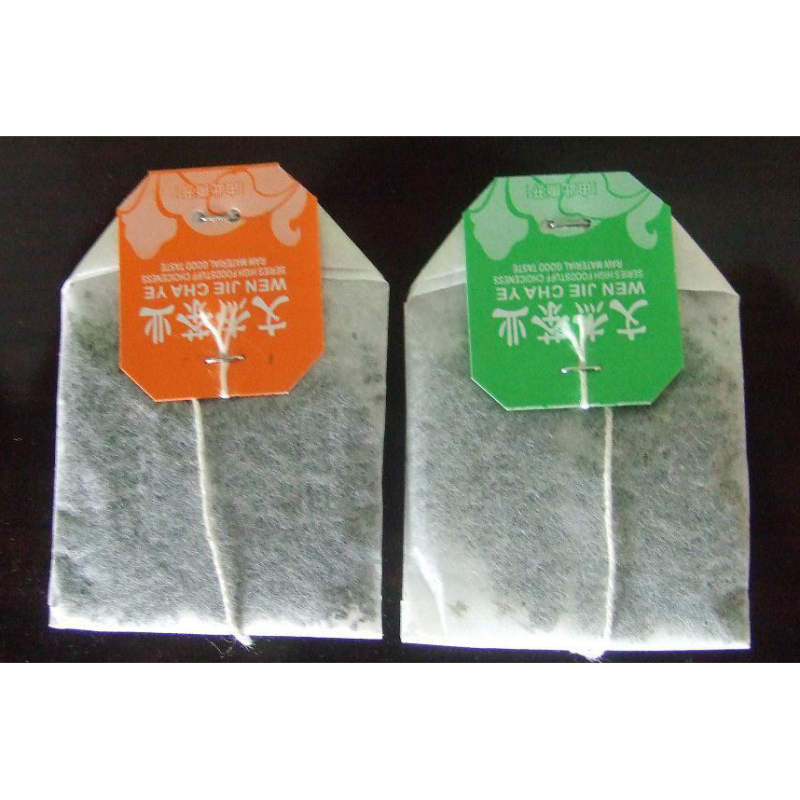

It makes double chamber tea bags which are cold-sealed. The machine links up hard label and thread with staple, and the tea bags are pushed out and packed into box manually after counting. The packing materials are non-heat-sealed filter paper, label, thread and staple.

Technical data:

Output: 120±10 (bag/min)                Bag Capacity: Max. 10cm3(adjustable)
Degree of accuracy: ±5%                  Bag dimensions: 45mm×60mm
Tag dimensions: 28mm×32mm (hard tag)    Length of thread: 148mm±5mm
Size of staple: 13mm (5mm after folding)    Volume of hopper: 13dm3
Power supply: 3 phases, 380V, 50HZ        Power: total power 10KW, max. power 8kw
Net weight: 4000KG                      Gross weight: 5000KG
Dosage system: protection structure which keeps impurity away
Compressed air: 6atm (bar)/300L/min        Overall size: 3.5m(L)×1.5m(W)×2.4m(H)

1. It has necessary protection measures, such as short circuit protection, overloading protection, creepage protection, etc.
2. The complete machine is controlled and coordinated by PLC.
3. It is simple to set and control the temperature of all heating parts.
4. It is simple to set the counting number of output chute and control the packing of boxes.
5. It will give alarm if thread or packing materials are absent.
6. It has the counting function of batch quantity. And it is easy to return the number to “zero”.
7. The square marks of envelope paper are identified to keep the traction and cutting of fixed-length.
8. The square marks of tag paper are identified to keep the traction and cutting of fixed-length.
9. It has the function of jog on machine.
10. It has 2 emergency buttons to stop the machine if emergency happens.
