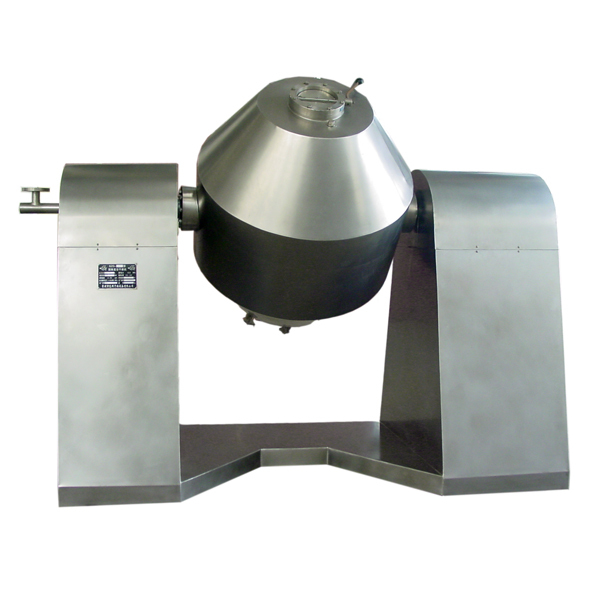

Double Cone Mixer

Item No.: LPMIE182
The double cone mixer is used for mixing of dry granule of pharmaceutical and other industries , with particular effect to free flowing powder and granule.
Product parameters
Model: LPW
Capacity: 40kg/batch
Power: 1.1kw
Weight: 280kg
Dimension: 1400X800X1850mm
INQUIRY
Description

Description

The double cone mixer is used for mixing of dry granule of pharmaceutical and other industries , with particular effect to free flowing powder and granule.
High mixing efficiency, free of dead corner, and even mixing.



Technical Parameter


Model

LPW-180

LPW-300

LPW-500

LPW-1000

LPW-1500

LPW-2000

LPW-2500

LPW-3000

LPW-4000

Full volume (m3)

0.18

0.3

0.5

1.0

1.5

2.0

2.5

3.0

4.0

Production capacity (kg/batch)

40

60

100

200

300

400

500

600

800

Mixing time(min)

4-8

6-10

6-10

6-10

6-10

6-10

6-10

6-10

6-10

Turning speed of cylinder (rpm)

12

12

12

12

12

12

12

7.8

7.8

Power(kw)

1.1

1.1

2.2

4

4

7.5

7.5

7.5

11

Overall size of main frame (L×W×H)(mm)

1400×800
×1850

1685×800
×1850

1910×800
×1940

2765×1500
×2370

2960×1500
×2480

3160×1900
×3500

3386×1900
×3560

4450×2200
×3600

4750×2500
×3680

Gross rotation height(mm)

1850

1850

1950

2460

2540

3590

3650

3700

3730

Weight (kg)

280

310

550

810

980

1500

2150

2500

3200
